UC 1

COMMUTATED EC MOTOR

(FM303609XX/FM303709XX)

Walk-in Coolers | Ventilation

SPECIFICATIONS

Rated voltage 120 / 230VAC (+/-10%), 50/60Hz
Temperature range -30°C to +50°C
Thermal Derate protection Torque compensation in overload condition
Rated current 0.9 / 0.6A
Efficiency ≤ 75%

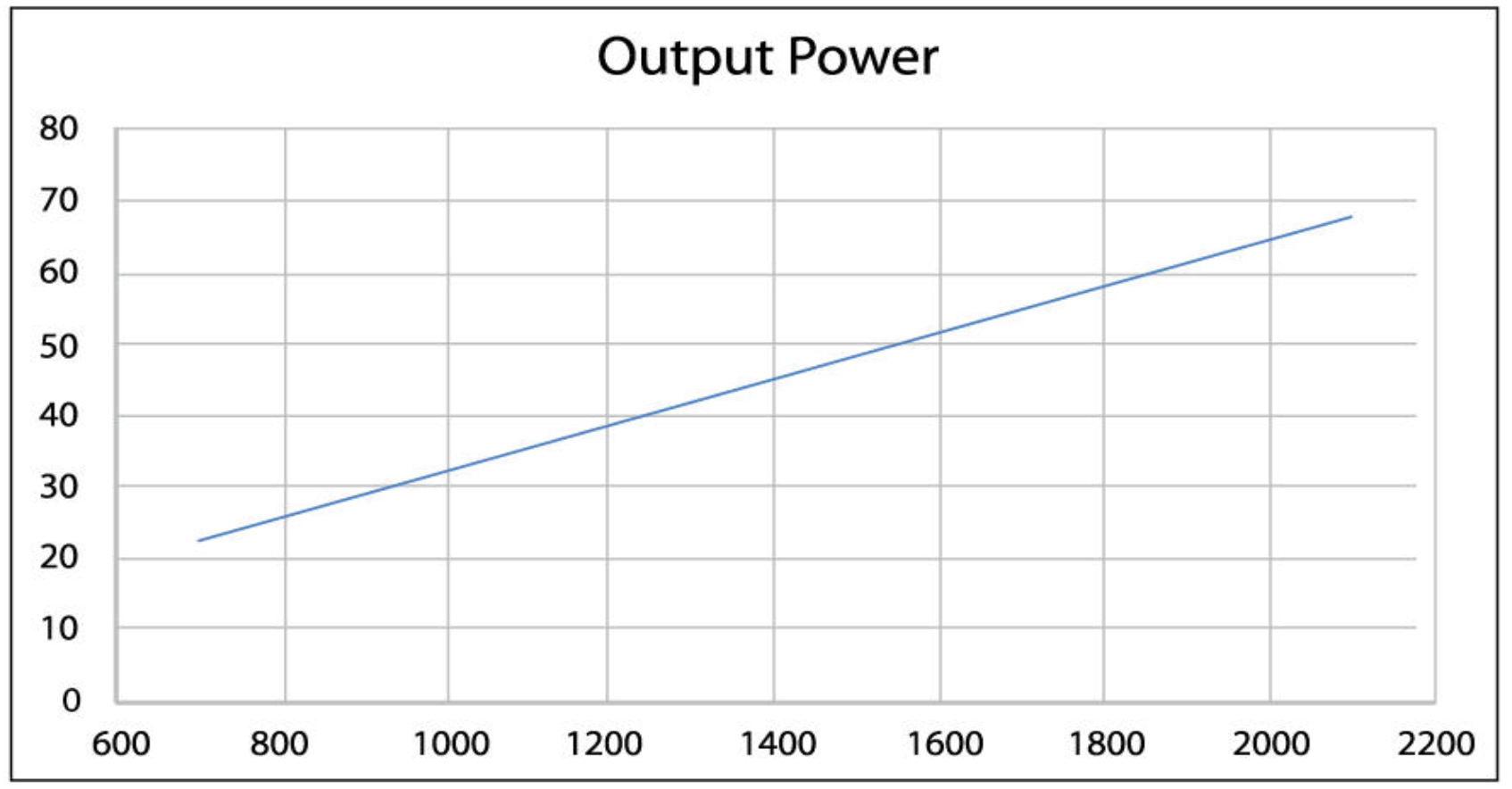

Output rated 50W (1/15HP @1550 rpm)
Rated speed 400 to 2400rpm (+/-1%)
Speed selection 3 discrete programmable speeds.
Direction of rotation CCW, CW, reversible
Reverse speed Timed reverse options available.
Motor protection Electronic Protected (EP)
Ground protection Earth wire provided
Insulation Class Class B
Shaft Diameters 8mm (D-Flat:7mm)
Bearing 608 /6201 sealed ball bearings
Approvals UL / TÜV / CE / RCM / CCC / ATEX*
Ingress protection IP55
*Option on request: Please discuss with our representative.

SUITABLE FANS

154mm (6") 172mm (6") 200mm (8") 230mm (9") 254mm (10") 300mm (12")
Speed 22° 28° 34° 22° 28° 34° 22° 28° 34° 22° 28° 34° 22° 28° 34° 22° 28° 34°
1300 rpm
1550 rpm
1800 rpm

Flexible Mounting Options

- Threads available in front or rear of the motor;
- Belly band available for basket mount.

Fan Fixing

- Screw options for metric and imperial;
- Keyed, D-Shaft available.

Interface

- Three speeds, programmable;
- Timed reverse;
- Constant speed and constant flow controls available.
