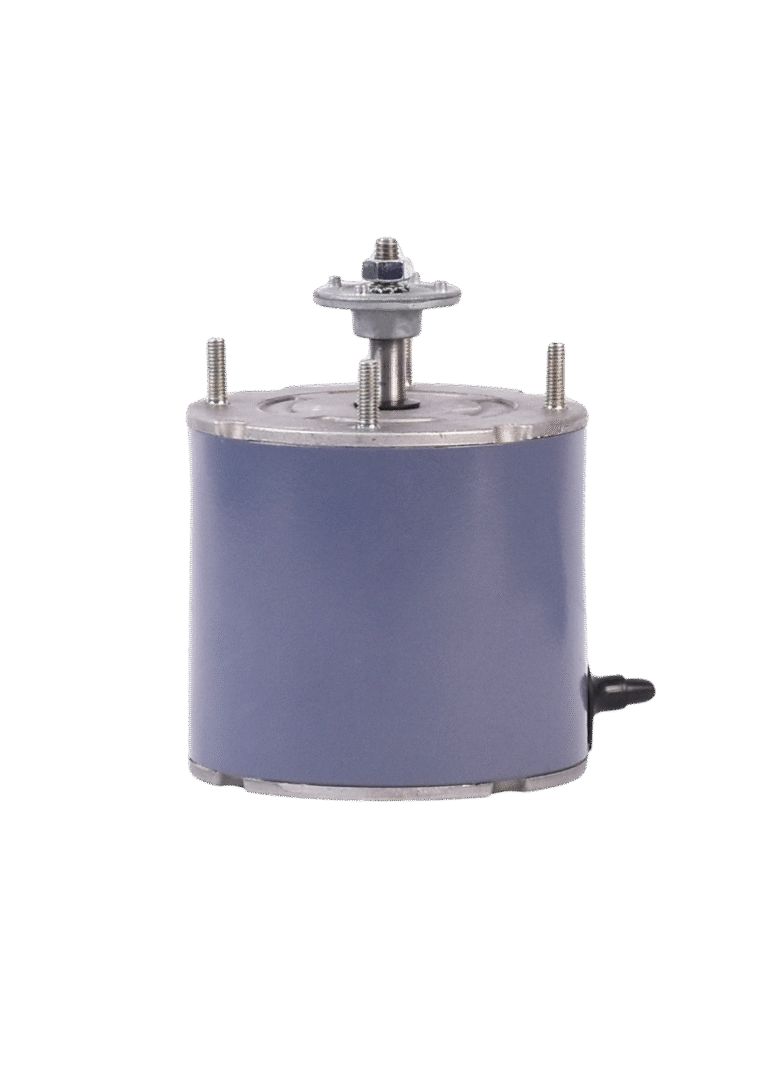

UC 40

GLOBAL VOLTAGE COMMUTATED EC MOTOR

(FM103609XX)

Food Service | Food Retail | Walk-in Coolers

SPECIFICATIONS

Rated voltage 100 - 240VAC (+/-10%), 50/60Hz
Temperature range -30°C to +50°C
Thermal Derate Protection Torque compensation in overload condition
Rated current 0.7 / 0.4A
Efficiency ≤ 75%

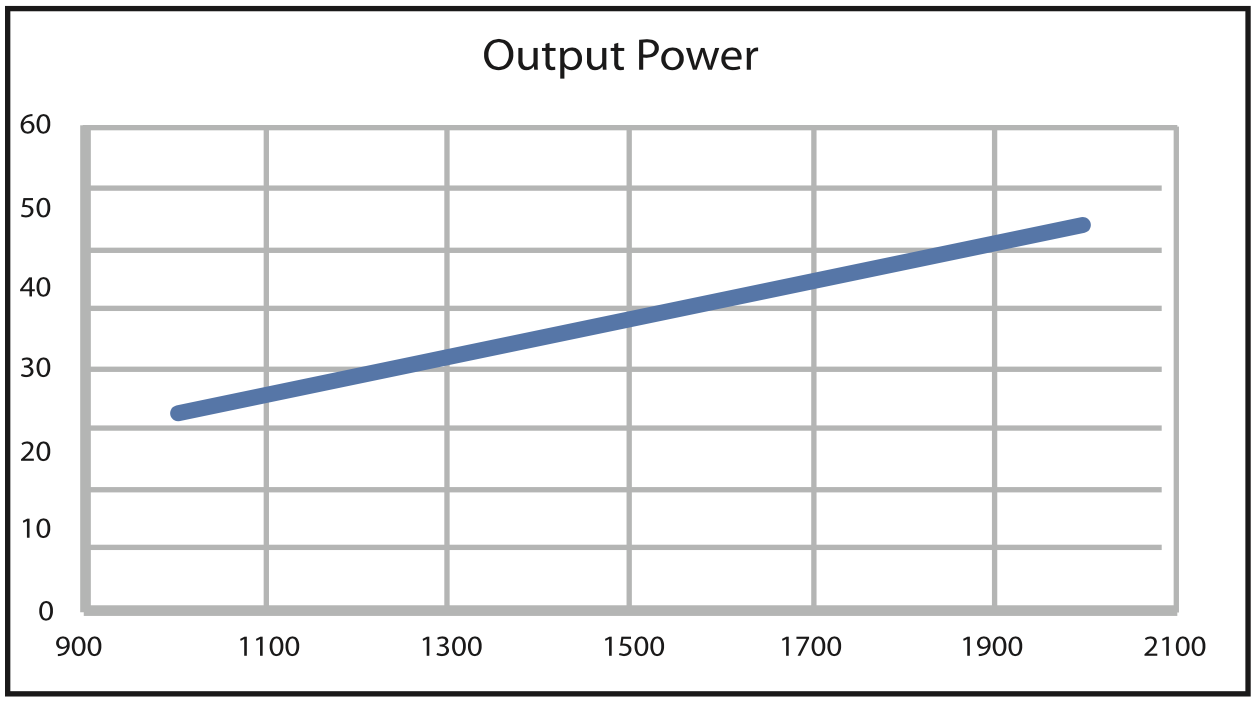

Output power 40W Nominal (1/20th hp@1550 rpm)
Rated speed 400 to 2000 rpm (+/-1%)
Speed selection 3 discrete programmable speeds.
Direction of rotation CCW, CW, reversible
Reverse Speed Timed reverse options available.
Motor Protection Electronic Protected (EP)
Ground Protection Earth wire optional
Insulation Class Class B
Shaft Diameters 8mm
Bearing 608 sealed ball bearings
Approvals UL / TÜV / CE / RCM / CCC / ATEX*
Ingress protection IP66
Hydrocarbon Compatibility* EN60335-2-89 ANNEX BB / ATEX
*Option on request: Please discuss with our representative.

SUITABLE FANS

154mm (6") 172mm (6") 200mm (8") 230mm (9") 254mm (10") 300mm (12")
Speed 22° 28° 34° 22° 28° 34° 22° 28° 34° 22° 28° 34° 22° 28° 34° 22° 28° 34°
1300 rpm
1550 rpm
1800 rpm

Flexible Mounting Options

- Threads available in front or rear of the motor;
-Belly band available for basket mount.

Fan Fixing

- Screw options for metric and imperial;

Interface

- Three speeds, programmable;
- Timed reverse;
- Constant speed and constant flow controls available.
